Zebron ZB-5MS<span style="font-style: italic; font-variant: small-caps;">plus</span> GC Columns
Zebron ZB-5MSPLUS GC column offers versatile 5 % phenyl-arylene selectivity with improved sensitivity

Zebron ZB-5MSplus GC Columns

The Next Generation of Inertness

  • The next generation of inertness for specialty chemical, forensic, toxicology, and food testing applications
  • Specialized deactivation for versatile 5 % phenyl-arylene selectivity with improved sensitivity
  • Low bleed (MS Certified) and well-suited to high sensitivity GC-MS and GC-MS/MS work

Running PAHs? See ZB-PAH-EU and ZB-PAH-CT
Running semivolatiles and PBDEs? See ZB-SemiVolatiles
Running at extremely high temperatures? See ZB-5HT Inferno

Recommended Use
Acids, Alkaloids, Amines, Drugs, Ethanolamines , Essential Oils/Flavors, Halo-hydrocarbons, Pesticides/Herbicides, Phenols, Residual Solvents, Solvent Impurities



Recommended Use
Specialized deactivation for versatile 5% Phenyl-Arylene selectivity with improved sensitivity


Upgrade to Zebron from any 5 % phenyl or 5 % phenyl-arylene / 95 % dimethylpolysiloxane phase

Agilent® Restek® Supelco®
DB®-5ms
DB-5ms Ultra Inert
HP-5ms
HP-5ms Ultra Inert
VF-5msi
Rtx®-5Sil MS SLB®-5ms

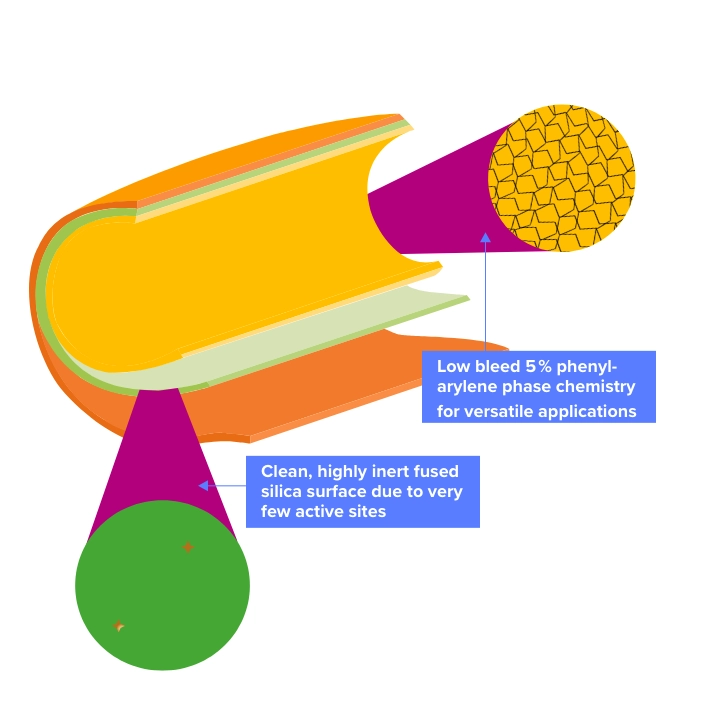

Engineered for High Performance

Improved Inertness, Better Peak Shape, Low Bleed, and Aqueous Stability

Active sites on a GC column’s surface can result in analyte adsorption and degradation, negatively affecting peak shape and response. To reduce potential surface activity, Zebron ZB-5MSplus is designed with a rigorous fused silica deactivation process that improves inertness for troublesome compounds. Instantly achieve higher responses for active compounds compared to your current 5ms phase column, without changing your selectivity.

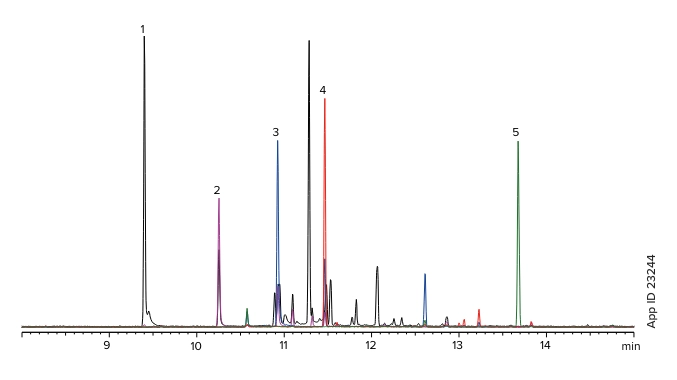

Melamine in Dog Food by GC-MS

Extraction Protocol:
  1. Combine 0.5 g of homogenized dog food with 10 mL of DEA/Water/Acetonitrile (1:4:5) in a 15 mL centrifuge tube
  2. Sonicate for 30 min
  3. Centrifuge at 5000 rpm for 10 min
  4. Transfer 100 µL of supernatant to an autosampler vial and evaporate to dryness using nitrogen gas
  5. Reconstitute with 100 µL of Acetonitrile/Pyridine (1:1) and then derivatize using 100 µL BSTFA with 1 % TCMS at 70 °C for 45 min

Column:
Zebron ZB-5MSplus
Dimension:
30 meter x 0.25 mm x 0.25 µm
Part No.:
Injection Volume:
Splitless @ 280 °C, 1 µL
Carrier Gas:
Helium @ 1 mL/min (constant flow)

Oven Program:
75 °C for 1 min to 320 °C @ 15 °C/min hold for 4 min
Detector:
MSD @ 320 °C
Sample:
1. Cyanuric acid
2. Ammelide
3. Ammeline
4. Melamine
5. Benzoguanamine

Versatile Performance For Drugs and Chemicals

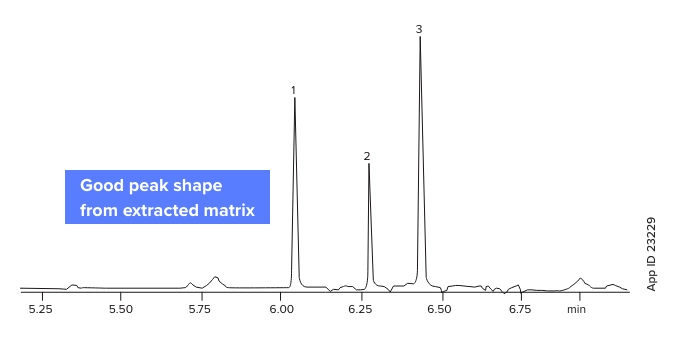

Cannabinoids In Brownies by GC-MS

Extraction Protocol:
  1. Combine 1 g of chocolate brownie with 10 mL of water in a 50 mL centrifuge tube
  2. Shake using a mechanical shaker until dissolved
  3. Add roQ™ QuEChERS EN15662 extraction salt packet (KS0-8909) and 10 mL of acetonitrile
  4. Shake tube for 3 min using mechanical shaker
  5. Centrifuge at 2700 rpm for 5 min
Column:
Zebron ZB-5MSplus
Dimension:
30 meter x 0.25 mm x 0.25 µm
Part No.:
Injection Volume:
Splitless @ 250 °C, 1 µL
Carrier Gas:
Helium @ 1.8 mL/min (constant flow)
Oven Program:
100 °C for 1 min to 320 °C @ 50 °C/min,
hold for 2 min
Detector:
MSD @ 320 °C
Sample:
1. Cannabidiol
2. ∆-9-Tetrahydrocannabinol
3. Cannabinol

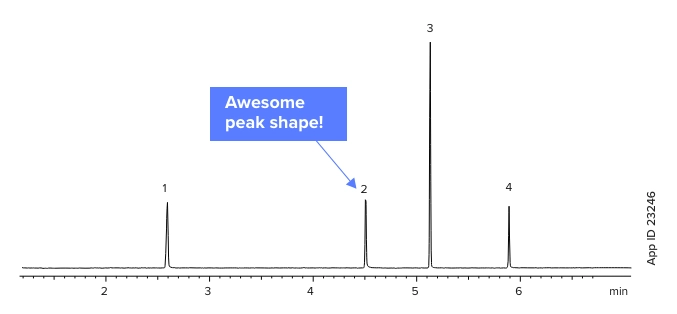

Ethanolamines by GC-MS

Column:
Zebron ZB-5MSplus
Dimension:
30 meter x 0.25 mm x 1.00 µm
Part No.:
Injection Volume:
Split 200:1 @ 250 °C, 1 µL
Carrier Gas:
Helium @ 1.4 mL/min (constant flow)
Oven Program:
30 °C to 300 °C @ 40 °C/min
Detector:
MSD @ 320 °C
Sample:
1. Monoethanolamine
2. Diethanolamine
3. Triethylene glycol monomethyl ether (IS)
4. Triethanolamine
