Zebron ZB-PAH-CT GC Columns
Zebron ZB-PAH-CT GC columns offer enhanced resolutions for EU and EPH regulated PAHs
Zebron ZB-PAH-CT GC Columns
Zebron ZB-PAH-CT GC Columns
Priority PAH Analysis by GC
Zebronâ„¢ ZB-PAH-CT columns are manufactured to provide the most optimal performance for EU-regulated polycyclic aromatic hydrocarbons (PAHs) and EPA regulated PAHs. We designed the Zebron ZB-PAH-CT GC column to achieve complete resolution of Chrysene from Triphenylene along with other EU 15+1 and Triphenylene PAH compounds. Its unique selectivity helps eliminate false positives while resolving PAH isomers, providing easy, fast, and accurate quantification of PAHs in environmental and food samples.
Zebron ZB-PAH-CT features
- Enhanced Resolution for Chrysene and Triphenylene (PAH Interferences)
- Increased Benzo[b,k]fluoranthene Separation
- Optimal Performance and Resolution of Regulated PAH Isomers
- Great Resolution of Critical Isomers, e.g. Benzo[b,j,k]fluoranthene
Recommended Use
Separation and Analysis of PAHs from Environmental, Food and Consumer Product Samples. Analysis of 15+1 EU-regulated and EPA regulated PAHs in food testing, rubber, plastic, coal, Sources include cigarette smoke, vehicle exhausts, asphalt roads, coal, coal tar, wildfires, agricultural burning, residential wood burning, municipal, industrial waste incineration.
Recommended Use Separation of EU PAH 15+1, enhanced resolution for Chrysene and Triphenylene (PAH Interferences) and increased Benzo[b,k] fluoranthene separation |
Upgrade to Zebron from traditional phases used for PAHs:
| Agilent® |
|---|
| Select PAH |
Say Hello to the Zebron ZB-PAH-CT GC Column
Designed to move conventional PAH testing to the exceptional, Zebron GC columns come to life through a coupling of innovative spirit and technical excellence. The Zebron ZB-PAH-EU and ZB-PAH-CT offer unparalleled performance through the power of targeted selectivity when analyzing Polycyclic Aromatic Hydrocarbons (PAHs).
Excellent Resolution of Chrysene and Triphenylene
We designed the Zebron ZB-PAH-CT GC column to achieve complete resolution of Chrysene from Triphenylene along with other EU 15+1 PAH compounds. Its unique selectivity helps eliminate false positives while resolving PAH isomers, providing easy, fast, and accurate quantification of PAHs in environmental and food samples.

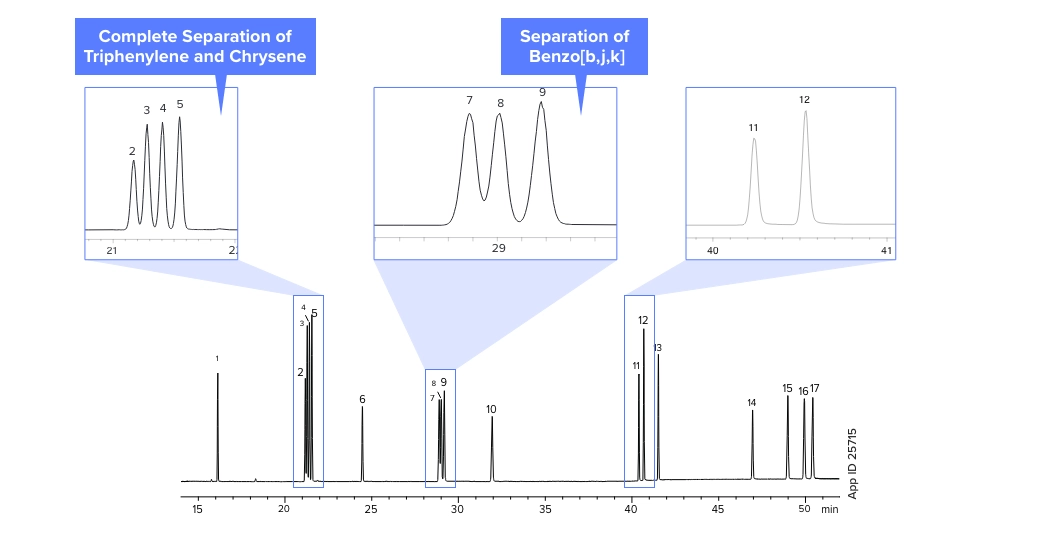

EU 15+1 PAH Analysis Using Zebron ZB-PAH-CT GC column
|
Columns:
Zebron ZB-PAH-CT
|
|
|
Dimension:
40 meter x 0.18 mm x 0.14 µm
|
|
|
Part No.:
7PD-G044-47
|
|
|
Injection:
Split 30:1 @ 320 °C, 1 μL
|
|
|
Recommended Liner:
Zebron PLUS Single Taper Z-Linerâ„¢
|
|
|
Liner Part No.:
AG2-4B13-05 (for Shimadzu® 2010 GC)
|
|
|
Carrier Gas:
Helium @ 78 psi (constant pressure)
|
Oven Program:
45 °C for 0.8 min to 200 °C @ 45 °C/min
to 265 °C @ 3 °C/ min for 5 min to 270 °C
@ 1 °C/min to 320 °C @ 10 °C/min for 15 min
|
|
Detector:
MSD (Shimadzu® GC-MS-QP2010 Ultra) |
|
Mode:
SIM |
|
SIM Ions:
216, 226, 228, 242, 252, 276, 278, 302 m/z |
|
Transfer line Temperature:
300 °C |
|
Source Temperature:
300 °C |
Sample:
1. Benzo[c]fluorene 2. Cyclopenta[c,d]pyrene 3. Benz[a]anthracene 4. Triphenylene 5. Chrysene 6. 5-Methylchrysene 7. Benzo[b]fluoranthene 8. Benzo[j]fluoranthene 9. Benzo[k]fluoranthene 10. Benzo[a]pyrene 11. Indeno[1,2,3-c,d]pyrene 12. Dibenz[a,h]anthracene 13. Benzo[g,h,I]perylene 14. Dibenzo[a,l]pyrene 15. Dibenzo[a,e]pyrene 16. Dibenzo[a,I]pyrene 17. Dibenzo[a,h]pyrene |

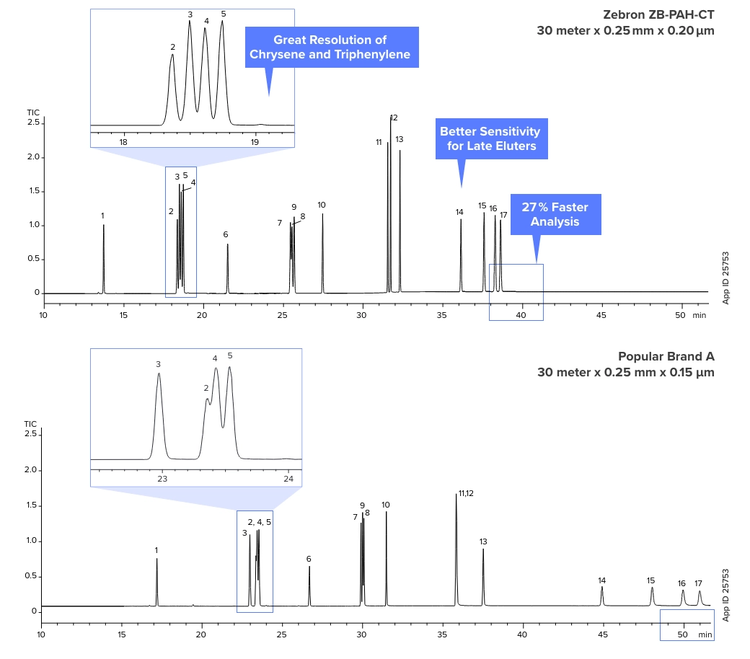

Shorter Run Time and Better Sensitivity
Comparison of ZB-PAH-CT vs. Popular GC PAH column
Analysis of EU 15+1 and Triphenylene PAHs
GC-MS conditions for both applications:
|
Columns:
As Indicated
|
|
|
Dimension:
As Indicated
|
|
|
Part No.:
7HG-G044-10 (Zebron ZB-PAH-CT)
|
|
|
Injection:
Split 15:1 @ 320 °C, 1 μL
|
|
|
Recommended Liner:
Zebron PLUS Single Taper Z-Linerâ„¢
|
|
|
Liner Part No.:
AG2-4B13-05
|
|
|
Carrier Gas:
Helium @ 23.7 psi (constant pressure)
|
Oven Program:
45 °C for 0.8 min to 200 °C @ 45 °C/min to
266 °C @ 3 °C/ min for 0 min to 320 °C @
10 °C/min to 320 °C for 20 min
|
|
Detector:
MSD (Shimadzu® GC-MS-QP2010 Ultra) |
|
Mode:
SIM |
|
SIM Ions:
216, 226, 228, 242, 252, 276, 278, 302 m/z |
|
Transfer line Temperature:
300 °C |
|
Source Temperature:
300 °C |
Sample:
1. Benzo[c]fluorene 2. Cyclopenta[c,d]pyrene 3. Benz[a]anthracene 4. Triphenylene 5. Chrysene 6. 5-Methylchrysene 7. Benzo[b]fluoranthene 8. Benzo[j]fluoranthene 9. Benzo[k]fluoranthene 10. Benzo[a]pyrene 11. Indeno[1,2,3-c,d]pyrene 12. Dibenz[a,h]anthracene 13. Benzo[g,h,I]pyrylene 14. Dibenzo[a,l]pyrene 15. Dibenzo[a,e]pyrene 16. Dibenzo[a,I]pyrene 17. Dibenzo[a,h]pyrene |
