Zebron ZB-PAH-EU GC Columns
Zebron ZB-PAH-EU GC columns are a specialty phase used for PAH analysis
Zebron ZB-PAH-EU GC Columns
Zebron ZB-PAH-EU GC Columns
Priority PAH Analysis by GC
Zebron ZB-PAH-EU columns are designed to move conventional PAH testing to the exceptional, Zebron GC columns come to life through a coupling of innovation spirit and technical excellence. The Zebron ZB-PAH-EU and ZB-PAH-CT offers unparalleled performance through the power of targeted selectivity when analyzing polycyclic aromatic hydrocarbons (PAHS).
Zebron ZB-PAH-EU features
• Up to 70 % Faster PAH Analysis
• Elevated Temperature Stability (340/360 °C)
• Great Resolution of Critical Isomers, e.g. Benzo[b,j,k]fluoranthene
Recommended Use
Separation and Analysis of PAHs from Environmental, Food and Consumer Product Samples. Analysis of 15+1 EU-regulated and EPA regulated PAHs in food testing, rubber, plastic, coal, Sources include cigarette smoke, vehicle exhausts, asphalt roads, coal, coal tar, wildfires, agricultural burning, residential wood burning, municipal, industrial waste incineration.
Recommended Use Fast separation of EU PAH 15+1 and equipped with elevated temperature stability (340/360 °C) |
Upgrade to Zebron from traditional phases used for PAHs
| Agilent® | Restek® |
|---|---|
| DB®-EUPAH | RXI®-PAH |
Complete Resolution of EU 15+1 and EPA 610 PAHs
Zebron ZB-EU-PAH GC column demonstrates excellent resolution and accurate quantitation of European regulated EU 15+1 and EPA 610 PAHs.

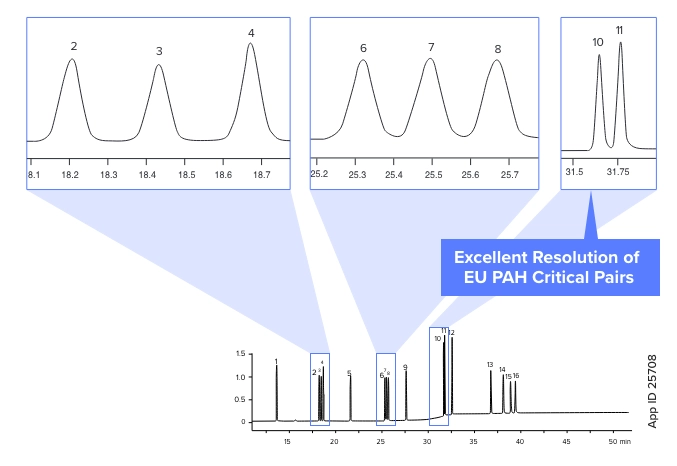

Analysis of EU 15+1 PAHs
Sample:
1. Benzo[c]fluorene 2. Benz[a]anthracene 3. Cyclopenta[c,d]pyrene 4. Chrysene 5. 5-Methylchrysene 6. Benzo[b]fluoranthene 7. Benzo[k]fluoranthene 8. Benzo[j]fluoranthene 9. Benzo[a]pyrene 10. Indeno[1,2,3-cd]pyrene 11. Dibenz[a,h]anthracene 12. Benzo[g,h,I]perylene 13. Dibenzo[a,l]pyrene 14. Dibenzo[a,e]pyrene 15. Dibenzo[a,i]pyrene 16. Dibenzo[a,h]pyrene |

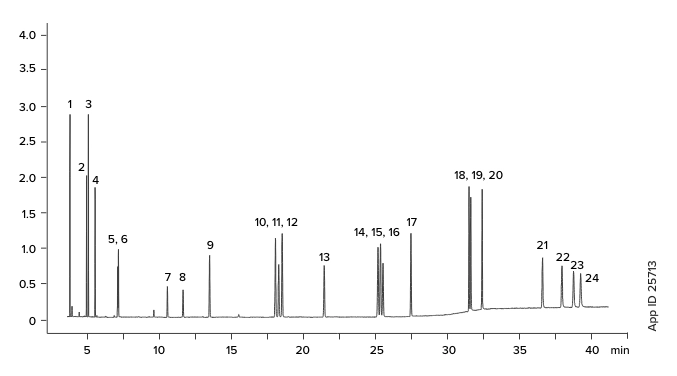

Analysis of EU 15+1 and EPA 610 PAHs
GC-MS conditions for both applications:
|
Column:
Zebron ZB-PAH-EU
|
|
|
Dimension:
30 meter x 0.25 mm x 0.20  µm
|
|
|
Part No.:
7HG-G043-10
|
|
|
Injection:
Split 5:1 @ 330 °C, 1 μL
|
|
|
Recommended Linear:
Zebron PLUS Single Taper Z-Linerâ„¢
|
|
|
Liner Part No.:
AG2-4B13-05 (for Shimadzu® 2010 GC)
|
|
|
Carrier Gas:
Helium @ 24 psi (constant pressure)
|
|
|
Oven Program:
45 °C for 0.8 min to 200 °C @ 45 °C/min to 226 °C @ 3 °C/min for 0 min to
320 °C @ 10 °C/min for 20 min
|
|
|
Detector:
MSD, 50-500 m/z |
|
|
Transfer line Temperature:
300 °C |
|
|
Source Temperature:
300 °C |
Sample:
1. Naphthalene 2. Acenaphthylene 3. Acenaphthene 4. Fluorene 5. Phenanthrene 6. Anthracene 7. Fluoranthene 8. Pyrene 9. Benzo[c]fluorene 10. Benz[a]anthracene 11. Cyclopenta[c,d]pyrene 12. Chrysene 13. 5-Methylchrysene 14. Benzo[b]fluoranthene 15. Benzo[k]fluoranthene 16. Benzo[j]fluoranthene 17. Benzo[a]pyrene 18. Indeno[1,2,3-cd]pyrene 19. Dibenz[a,h]anthracene 20. Benzo[g,h,I]perylene 21. Dibenzo[a,l]pyrene 22. Dibenzo[a,e]pyrene 23. Dibenzo[a,I]pyrene 24. Dibenzo[a,h]pyrene |
Up to 70 % Faster GC Analysis
Zebron ZB-PAH-EU will allow you to gain back your precious analysis time! You can easily optimize your column dimensions for greater speed and lab productivity.

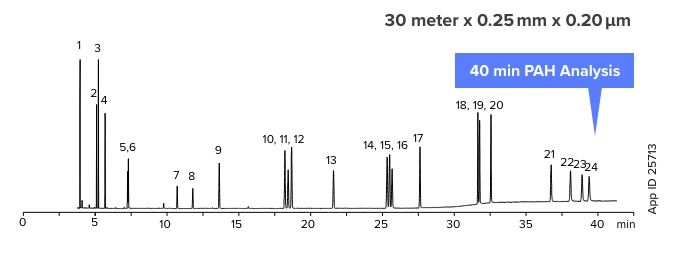

Fast Analysis of EU 15+1 and EPA 610 PAHs using Zebron ZB-PAH-EU
|
Columns:
Zebron ZB-PAH-EU
|
|
|
Dimension:
30 meter x 0.25 mm x 0.20 µm
|
|
|
Part No.:
7HG-G043-10
|
|
|
Injection :
Split 5:1 @ 330 °C, 1 μL
|
|
|
Recommended Liner:
Zebron PLUS Single Taper Z-Linerâ„¢
|
|
|
Liner Part No.:
AG2-4B13-05 (for Shimadzu® 2010 GC)
|
|
|
Carrier Gas:
Helium @ 24 psi (constant pressure)
|
|
|
Oven Program:
45 °C for 0.8 min to 200 °C @ 45 °C/min to 226 °C @ 3 °C/min for 0 min to 320 °C @
10 °C/min for 20 min |
|
|
Detector:
MSD, 50-500 m/z |
|
|
Transfer Line Temperature:
300 °C |
|
|
Source Temperature:
300 °C |
|

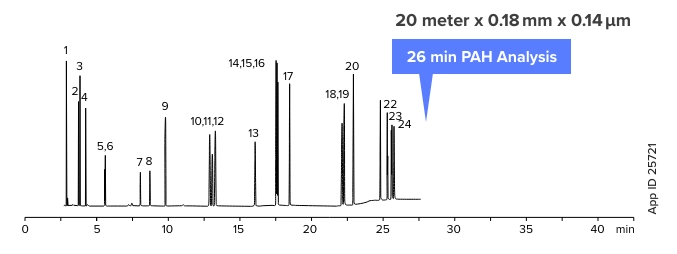

Columns:
Zebron ZB-PAH-EU
|
|
|
Dimension:
20 meter x 0.18 mm x 0.14 µm
|
|
|
Part No.:
7FD-G043-47
|
|
|
Injection:
Split 5:1 @ 330 °C, 1 μL
|
|
|
Recommended Liner:
Zebron PLUS Single Taper Z-Liner
|
|
|
Liner Part No.:
AG2-4B13-05 (for Shimadzu® 2010 GC)
|
|
|
Carrier Gas:
Helium @ 1.75 mL/min (constant flow)
|
|
|
Oven Program:
70 °C for 0.8 min to 180 °C @ 70 °C/min to 230 °C @ 7 °C/min for 6 min to 280 °C @ 40 °C/min for 5 min to 335 °C @ 25 °C/min for 5 min
|
|
|
Detector:
MSD, 100-500 m/z |
|
|
Transfer Line Temperature:
300 °C |
|
|
Source Temperature:
300 °C |
|

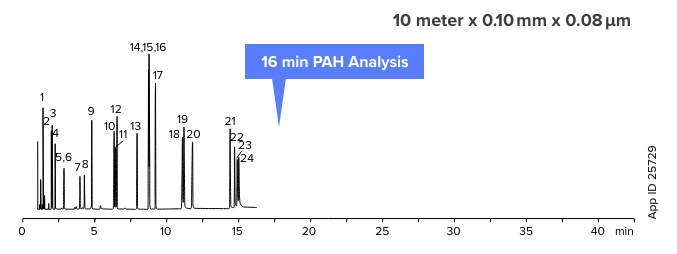

Columns:
Zebron ZB-PAH-EU
|
|
|
Dimension:
10 meter x 0.10 mm x 0.08 µm
|
|
|
Part No.:
7CB-G043-59
|
|
|
Injection:
Split 15:1 @ 320 °C, 1 μL
|
|
|
Recommended Liner:
Zebron PLUS Single Taper Z-Liner
|
|
|
Liner Part No.:
AG2-4B13-05 (for Shimadzu® 2010 GC)
|
|
|
Carrier Gas:
Helium @ 0.88 mL/min (constant flow)
|
|
|
Oven Program:
70 °C for 0.4 min to 180 °C @ 140 °C/min
to 230 °C @ 14 °C/min for 3 min to 280 °C
@ 85 °C/min for 5 min to 330 °C @
40 °C/min for 5 min
|
|
|
Detector:
MSD, 100-500 m/z |
|
|
Transfer Line Temperature:
300 °C |
|
|
Source Temperature:
300 °C |
Sample for all applications:
1. Naphthalene 2. Acenaphthylene 3. Acenaphthene 4. Fluorene 5. Phenanthrene 6. Anthracene 7. Fluoranthene 8. Pyrene |
9. Benzo[c]fluorene 10. Benz[a]anthracene 11. Cyclopenta[c,d]pyrene 12. Chrysene 13. 5-Methylchrysene 14. Benzo[b]fluoranthene 15. Benzo[k]fluoranthene 16. Benzo[j]fluoranthene |
|
17. Benzo[a]pyrene
18. Indeno[1,2,3-cd]pyrene 19. Dibenz[a,h]anthracene 20. Benzo[g,h,I]perylene 21. Dibenzo[a,l]pyrene 22. Dibenzo[a,e]pyrene 23.Dibenzo[a,I]pyrene 24. Dibenzo[a,h]pyrene |

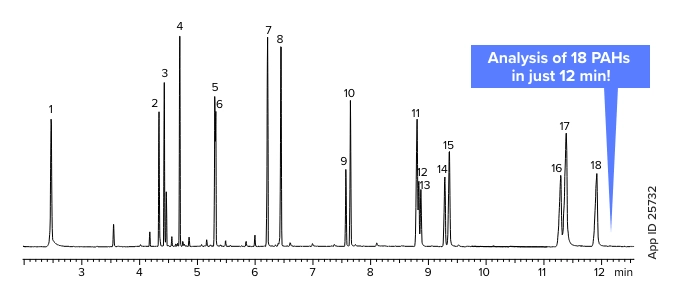

GC-MS Analysis of PAHs in Rubber and Plastic!
Zebron ZB-PAH-EU GC column separates the 18 PAH isomers within 12 minutes, resolving all critical pairs while demonstrating consistent column inertness.
|
Columns:
Zebron ZB-PAH-EU
|
|
|
Dimension:
10 meter x 0.10 mm x 0.08 µm
|
|
|
Part No.:
7CB-G043-59
|
|
|
Injection:
Split 5:1 @ 320 °C, 1 μL
|
|
|
Recommended Liner:
Zebron PLUS Single Taper Z-Liner
|
|
|
Liner Part No.:
AG2-4B13-05 (for Shimadzu® 2010 GC)
|
Carrier Gas:
Helium @ 0.68 mL/min (constant flow)
|
|
Oven Program:
100 °C for 3.0 min to 200 °C @ 60 °C/min to
270 °C @ 22 °C/min to 300 °C @ 4.5 °C/min
to 330 °C @ 80 °C/min for 0.5 min
|
|
Detector:
MSD, 50-500 m/z |
|
Transfer line Temperature:
300 °C |
|
Source Temperature:
300 °C |
Sample:
1. Naphthalene 2. Acenaphthylene 3. Acenaphthene 4. Fluorene 5. Phenanthrene 6. Anthracene 7. Fluoranthene 8. Pyrene 9. Benz[a]anthracene 10. Chrysene 11. Benzo[b]fluoranthene 12. Benzo[k]fluoranthene 13. Benzo[j]fluoranthene 14. Benzo[a]pyrene 15. Benzo[e]pyrene 16. Indeno[1,2,3-cd]pyrene 17. Dibenz[a,h]anthracene 18. Benzo[g,h,i]perylene |

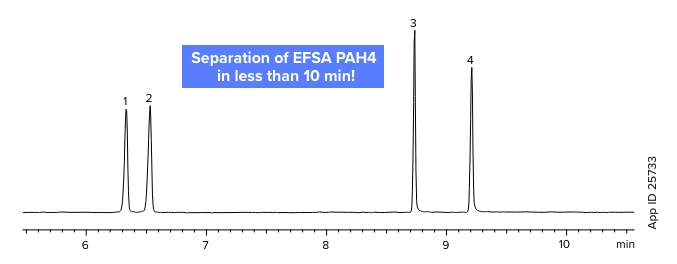

Fast and Accurate GC-MS Test Method for Measuring PAHs in Food
Zebron ZB-PAH-EU is an excellent solution for separating the four most common PAH markers within the European Food Safety Authority EFSA PAH4 for food analysis.
Super Fast Analysis of Food PAHs Using ZB-PAH-EU
|
Columns:
Zebron ZB-PAH-EU
|
|
|
Dimension:
10 meter x 0.10 mm x 0.08 µm
|
|
|
Part No.:
7CB-G043-59
|
|
|
Injection:
Split 15:1 @ 320 °C, 1 μL
|
|
|
Recommended Liner:
Zebron PLUS Single Taper Z-Liner
|
|
|
Liner Part No.:
AG2-4B13-05 (for Shimadzu® 2010 GC)
|
|
|
Carrier Gas:
Helium @ 0.88 mL/min (constant flow)
|
|
|
Oven Program:
70 °C for 0.4 min to 180 °C @ 140 °C/min to 230 °C @ 14 °C/min for 3 min to 280 °C
@ 85 °C/min for 5 min to 330 °C @ 40 °C/min for 5 min |
|
|
Detector:
MSD, 100-500 m/z |
|
|
Transfer Line Temperature:
300 °C |
|
|
Source Temperature:
300 °C |
|
|
Sample:
10 ppm EFSA PAH4 Standard in Toluene
1. Benz[a]anthracene 2. Chrysene 3. Benzo[b]fluoranthene 4. Benzo[a]pyrene |
|
