Zebron ZB-1 GC Columns
Zebron ZB-1 Gas Chromatography (GC) column offers low bleed (MS Certified), low activity, and high efficiency and is an excellent USP G42 phase
Zebron ZB-1 GC Columns
Zebron ZB-1 GC Columns
Low Polarity For a Wide Range of Applications
- Low polarity phase suited for true boiling point compounds
- Low bleed (MS Certified), low activity, and high efficiency
- Excellent resolving power of critical pairs in complex petrochemical samples
- Used for “fingerprinting” and routine quality control analyses (e.g., citrus oils)
- Equivalent to USP Phase G2
- Temperature Limits: 60 to 360/370 ˚C (Isothermal/TPGC)*
Recommended Use Excellent resolving power of critical pairs in complex petrochemical samples and used for “fingerprinting” and routine quality control analyses |

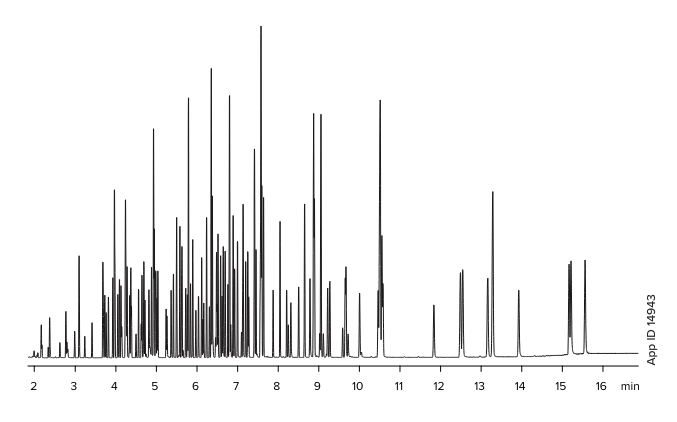

Simulated Distillation Markers: ASTM Method D 2887
Want even lower bleed for GC-MS? Zebron-ZB-1 »
Running at high temperatures? Zebron-ZB-1HT-Inferno »
Running at high temperatures? Zebron-ZB-1HT-Inferno »
Column:
Zebron ZB-1
|
|
Dimension:
10 meter x 0.53 mm x 2.65 µm
|
|
Part No.:
|
|
Injection Volume:
Split 10:1 @ 360 °C, 1 µL* |
|
Carrier Gas:
Helium @ 8.1 mL/min (constant flow) |
|
Oven Program:
35 °C to 360 °C @ 15 °C/min for 5 min |
|
Detection:
FID @ 360 °C |
|
Samples:
1. Pentane (C5)
2. Hexane (C6)
3. Heptane (C7)
4. Octane (C8)
5. Nonane (C9)
6. Decane (C10)
7. Undecane (C11)
8. Dodecane (C12)
9. Tetradecane (C14)
10. Pentadecane (C15)
11. Hexadecane (C16)
12. Heptadecane (C17)
13. Octadecane (C18)
14. Eicosane (C20)
15. Tetracosane (C24)
16. Octacosane (C28)
17. Dotriacontane (C32)
18. Hexatriacontane (C36)
19. Tetracontane (C40)
20. Tetratetracontane (C44) |

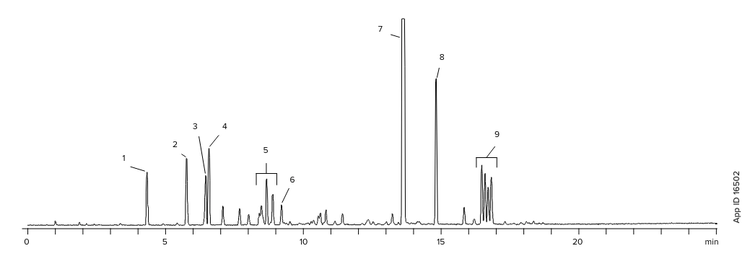

An Analytical Method Using the Zebron ZB-1 GC Column to Highlight the Opportunity to Resolve the Volatile Polar Sulfur Compounds in Petroleum Fuel
Results
The Zebron ZB-1 GC column provides
- A short run time of less than 20 minutes
- Good retention of low boiling sulfur compounds
- Elution of the higher molecular weight C1-Benzothiophenes
- Optimal separation of critical pairs
- Symmetric peaks for challenging sulfur compounds
Column:
Zebron ZB-1
|
|
Phase:
100% Dimethylpolysiloxane
|
|
Dimension:
30 meter x 0.32 mm x 3.00 µm
|
|
Part No.:
|
|
Injection Volume:
Split 10:1 @ 270 °C, 1 μL |
|
Carrier Gas:
Helium @ 2 mL/min (constant flow) |
|
Oven Program:
50 °C for 1 min to 300 °C @ 10 °C/min for 3 min
|
|
|
Detection:
Sulfur (SCD) @ 320 °C
|
|
|
Analytes:
1. Thiophene
2. Dimethyldisulfide
3. 2-Methyl-thiophene
4. 3-Methyl-thiophene
5. C2-Thiophenes
6. Diethylsulfide
7. Dibutylsulfide
8. Benzothiophene
9. C1-Benzothiophenes
|
