Zebron ZB-1HT Inferno GC Columns<br class="t-last-br" />
Zebron ZB-1HT-Inferno GC column is the first non-metal GC column that is stable to 430 °C
Zebron ZB-1HT Inferno GC Columns
Zebron ZB-1HT Inferno GC Columns
Robust Results Up to 430 ºC
- First non-metal columns stable to 430 °C
- Provides true boiling point separation for hydrocarbon distillation methods
- Longer lifetime with rugged high temperature, polyimide coated, fused silica tubing
- Low activity, provides good peak shape for acidic and basic samples
- Provides robust column performance for high temperature bake outs
Recommended Use
Diesel Fuel, High Boiling Petroleum Products, High Molecular Weight Waxes, Long-chained Hydrocarbons, Motor Oils, Polymers/Plastics, Simulated Distillation
 |
R&D 100 Award-Winning |
Recommended Use Rugged, high-temperature stability (up to 430 °C) for non-polar compounds for high boilers, contaminants, carry-overs, and high-temp bakeouts |
Upgrade to Zebron from any 100 % dimethylpolysiloxane phase
| Agilent® | Restek® | SGE® | Supelco® |
|---|---|---|---|
| DB®-1 |
Rtx®-1 | BP1 | SPB®-1 |
| DB-1ht HP-1 |
Rtx-1HT | Petrocol® 2887 | |
| CP-Sil 5 CB | |||
CP-SimDist |
Rugged, High-Temperature Performance

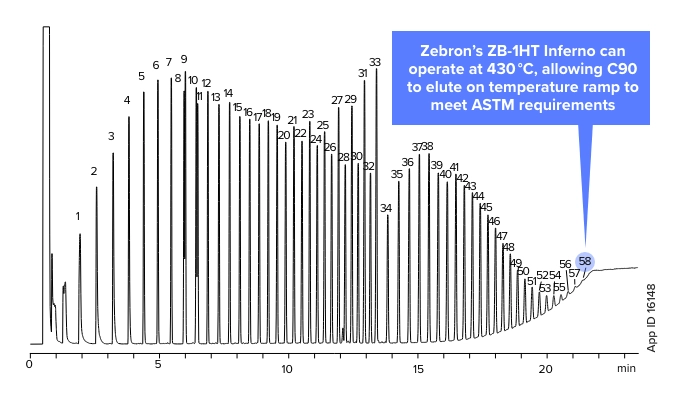

Great Separation of High Boiling Hydrocarbons (ASTM D6352)
Note: Sample was a combination of PolyWax® 655 and retention time markers C8-C40 in CS2/Chloroform
|
Column:
Zebron ZB-1HT Inferno
|
|
|
Dimension:
5 meter x 0.53 mm x 0.10 μm
|
|
|
Part No.:
|
|
|
Injection:
On-Column @ 43 °C, 0.1 μL
|
|
|
Carrier Gas:
Helium @ 4.4 mL/min (constant flow)
|
|
|
Oven Program:
40 °C for 0.5 min to 430 °C
@ 20 °C/min for 10 min
|
|
|
Detection:
FID @ 430 °C
|
|
|
Sample:
24 1. C10
2. C11 3. C12 4. C13 5. C14 6. C15 7. C16 8. C17 9. Pristane 10. C18 11. Phytane 12. C19 13. C20 14. C21 15. C22 16. C23 17. C24 18. C25 19. C26 20. C27 21. C28 22. C29 23. C30 24. C31 25. C32 26. C33 27. C34 28. C35 29. C36 30. C37 |
31. C38
32. C39 33. C40 34. C42 35. C44 36. C46 37. C48 38. C50 39. C52 40. C54 41. C56 42. C58 43. C60 44. C62 45. C64 46. C66 47. C68 48. C70 49. C72 50. C74 51. C76 52. C78 53. C80 54. C82 55. C84 56. C86 57. C88 58. C90 |

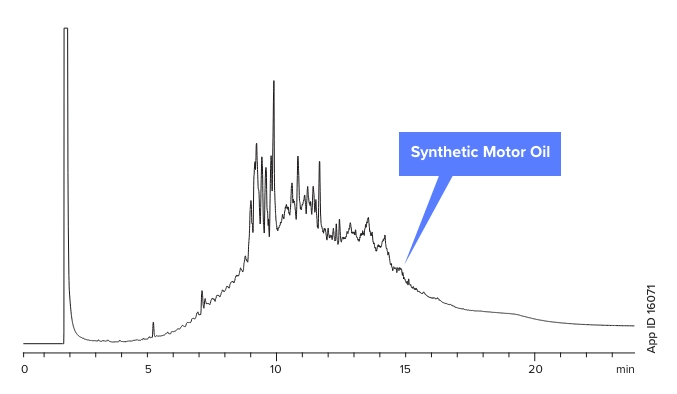

Bake Off Contaminants from Dirty Matrices
|
Column:
Zebron ZB-1HT Inferno
|
|
|
Dimension:
30 meter x 0.25 mm x 0.10 µm
|
|
|
Part No.:
|
|
|
Injection:
On-Column @ 153 °C, 1 µL |
|
|
Carrier Gas:
Helium @ 1 mL/min (constant flow)
|
|
|
Oven Program:
150 °C to 400 °C @ 14 °C/min
for 6 min
|
|
|
Detector:
FID @ 400 °C
|
|
|
Sample:
Sample was 1 % in dichloromethane
Mobil® 1 10W-30 Fully Synthetic Motor Oil
|
Run Versatile Samples

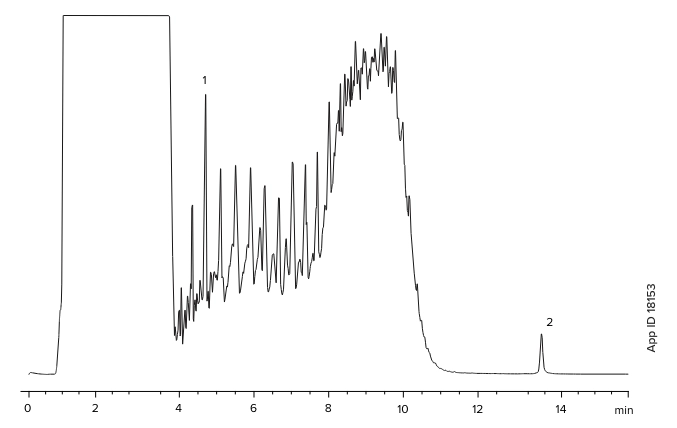

Hydrocarbons from Water by GC-FID DIN EN ISO 9377-2 (DEV H53)
|
Column:
Zebron ZB-1HT Inferno
|
|
|
Dimension:
15 meter x 0.32 mm x 0.25 μm
|
|
|
Part No.:
|
|
|
Injection:
Splitless @ 300 °C, 20 μL |
|
|
Carrier Gas:
Helium @ 2.0 mL/min (constant flow)
|
|
|
Oven Program:
50 °C for 2 min to 320 °C
@ 30 °C/min for 5 min
|
|
|
Detector:
FID @ 330 °C
|
|
|
Sample:
1. Decane (C10)
2. Tetracontane (C40) |
