Zebron ZB-Drug-1 GC Columns
Zebron ZB-Drug-1 GC columns are specially designed for GC analysts of drugs

Zebron ZB-Drug-1 GC Columns

Dramatically Faster Toxicology Testing

  • Specially deactivated to improve inertness and quantitation for drug compounds
  • Quickly and accurately analyze drug of abuse with great peak shape
  • Improve resolution of target analytes from matrix interferences
  • Run amphetamines in under 6 minutes and opiates in under 5 minutes
Need alternate selectivity for drugs? See ZB-5MSi.

Recommended Applications
Drug Screening (6-MAM, Amphetamines, Barbiturates, Benzodiazepines, Opiates, PCP, THC)

R&D100 Logo

R&D 100 Award-Winning Technology for Drugs of Abuse
Unclog your sample backlog! Developed by the leading GC scientists in the world, R&D 100 award-winning ZB-Drug-1 columns are specifically designed to analyze drugs abuse, with run times 2 to 8 times faster than typical GC columns used for toxicology testing. The novel phase chemistry has a dimethylpolysiloxane backbone with a special phenyl-containing functionally and improves resolution of typically troublesome analytes.




Recommended Use
Optimized phase deactivated to improve inertness, peak shape, and quantitation for drug compounds

Upgrade to Zebron from traditional phases used for drugs of abuse:

Agilent® Restek® SGE®
DB®-1ms
DB-5ms
DB-35
Rtx®-1ms
Rtx®-5
Rtx-5ms
Rtx-35ms
SPB®-1

Optimized Selectivity for Multiple Drug Classes

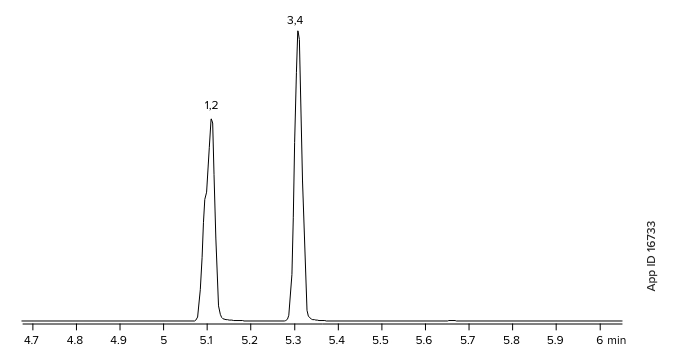

Traditional 5 % Phenyl Phase

Column:
As listed.
Dimension:
10 meter x 0.18 mm x 0.18 µm
Injection:
Split 10:1 @ 360 °C, 1 µL*
Carrier Gas:
Helium @ 1.2 mL/min (constant flow)
Oven Program:
140 °C to 320 °C @ 20 °C for 1 min
Detection:
MSD @ 230 °C
Sample:
Analytes @ 10 ppm BSTFA/Pyridine
1. Codeine-d6
2. Codeine
3. Morphine-d3
4. Morphine

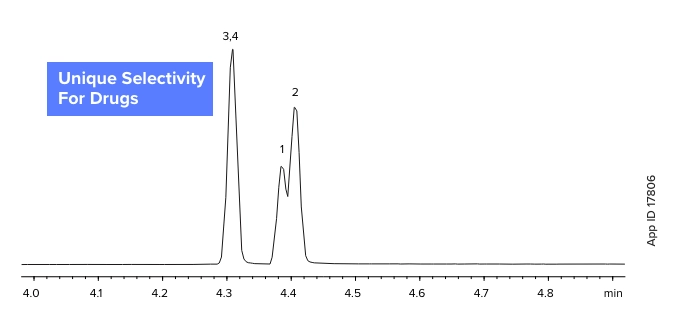

Zebron ZB-Drug-1

Column:
As listed.
Dimension:
10 meter x 0.18 mm x 0.18 µm
Part No.:
7CD-G023-08
Injection:
Split 10:1 @ 280 °C, 1 µL
Carrier Gas:
Helium @ 55 cm/sec (constant flow)
Oven Program:
180 °C to 340 °C @ 20 °C/min
Detection:
MSD @ 230 °C
Sample:
Analytes @ 10 ppm BSTFA/Pyridine
1. Codeine-d6
2. Codeine
3. Morphine-d3
4. Morphine

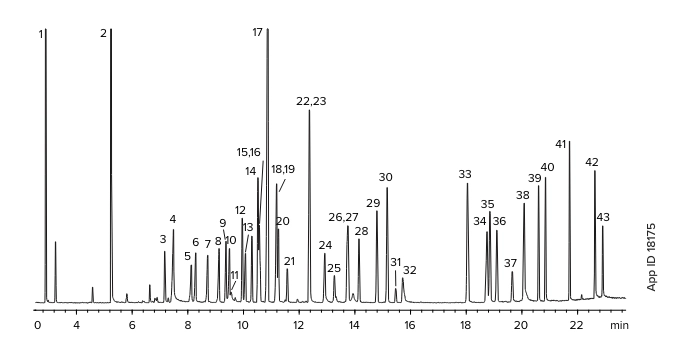

Common Drug Screen by GC-MS

Columns:
Zebron ZB-Drug-1
Dimension:
10 meter x 0.18 mm x 0.18 μm
Part No.:
7CD-G023-08
Injection:
Split 10:1 @ 260 °C,1 μL
Carrier Gas:
Helium @ 1 mL/min (constant flow)
Oven Program:
50 ºC to 150 ºC @ 15 ºC/min to 240 ºC @ 7 ºC/min to 320 ºC @ 25 ºC/min for 2 min
Detector:
MSD @ 320 °C; 45-450 amu


Sample:
Analytes are 25 ppm in Methanol
1. Acetophenone
2. Nicotine
3. Benzocaine
4. Ibuprofen
5. Allobarbital
6. Aprobarbital
7. Butalbital
8. Amobarbital
9. Phenacetin
10. Pentobarbital
11. Acetaminophen
12. Benzphetamine
13. Secobarbital
14. Phencyclidine
15. Meprobamate
16. Diphenhydramine
17. Lidocaine
18. Hexobarbital
19. Doxylamine
20. Glutethimide
21. Caffeine

22. Chlorpheniramine
23. Methapyrilene
24. Phenobarbital
25. Procaine
26. Methadone
27. Bromopheniramine
28. Propoxyphene
29. Trimipramine
30. Chlorcyclizine
31. Cocaine
32. Desipramine
33. Codeine
34. Morphine
35. Diazepam
36. Hydrocodone
37. 6-MAM
38. Oxymorphone
39. Heroin
40. Fentanyl
41. Ibogaine
42. Triazolam
43. LSD
