Luna Omega HPLC/UHPLC LC Columns
World Renowned HPLC Media Reinvented for UHPLC!
The cutting edge thermally modified Luna Omega particle delivers high efficiency, ruggedness, reproducibility, and dependability for a wide range of chromatographic analyses. Luna Omega HPLC and UHPLC columns are built upon more then 20 years of applied knowledge, invention, and customer experience in the manufacture and packing of LC columns. The particle’s novel design and proprietary manufacturing process results in greater particle inertness, a stronger particle morphology, and more consistent porosity.
- Greater separation muscle and retention
- Consistent porous structure and elimination of micropores
- Extreme ruggedness and reproducibility
Luna Omega Silica
One of the world’s leading HPLC brands, now enhanced for incredible HPLC and UHPLC performance! Luna Omega 1.6, 3, and 5 µm columns culminate 20 years of technological prowess, advancements, and innovation from Phenomenex! With astounding efficiency levels, highly versatile selectivities, and trusted accuracy, Luna Omega columns will take your chromatographic experience to a new level.

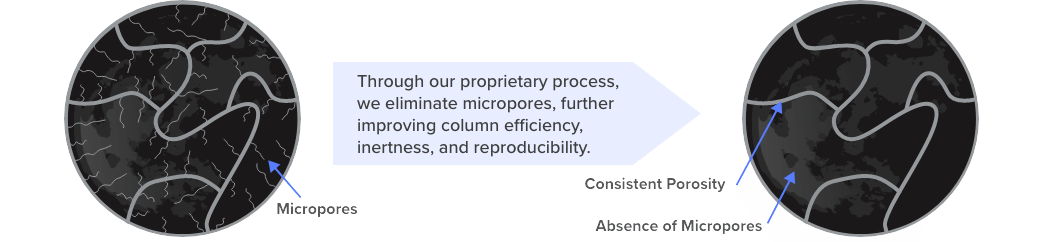

Thermal Modified Pore Structure
Material Characteristics
| Phase | Particle Sizes (µm) |
Pore Size (Ã…) |
Surface Area (m2/g) |
Carbon Load (%) |
pH Stability |
Pressure Limit (Bar/psi) | USP Column Classification |
|---|---|---|---|---|---|---|---|

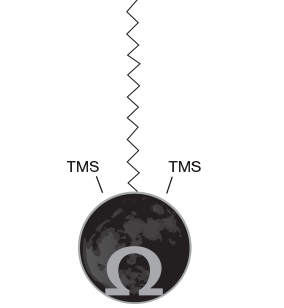

| C18 | 1.6, 3, 5 | 100 | 260 | 11 | 1.5 – 8.5* | 1034/15000** | L1 |
| PS C18 | 1.6, 3, 5 | 100 | 260 | 9 | 1.5 – 8.5* | 1034/15000** | L1 |

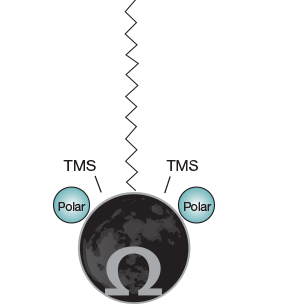

| Polar C18 | 1.6, 3, 5 | 100 | 260 | 9 | 1.5 – 8.5* | 1034/15000** | L1 |
| Omega SUGAR | 3 | 100 | 260 | 2 | 2.0 – 7.0 | 1034/15000** | L8 |
*pH stability under gradient conditions. pH stability is 1.5-10 under isocratic conditions.
**Columns with IDs ≤ 4.6 mm have a pressure limit of 1034 bar/15000 psi, columns with 10 mm IDs have a pressure limit of 414 bar/6000 psi, Luna Omega AXIA columns have a pressure limit of 241 bar/3500 psi.
Controlled Column Reproducibility
Batch-to-batch and column-to-column, Luna® Omega media and columns are designed to be consistent and incredibly accurate tools for your analysis. Each batch and column are quality tested to ensure dependability and reproducibility.
Quality documents are now digital, find your CQA here. www.phenomenex.com/QD
Column: |
|
Dimensions: 50 x 2.1 mm |
|
Part No.: |
|
Mobile Phase: A: Water B: Acetonitrile |
|
Gradient:
Time (min)
0
6
6.01
8 |
% B
20
60
20
20 |
Flow Rate: 0.4 mL/min |
|
Temperature: Ambient |
|
Detection: UV @ 220 nm |
|
Sample: 1. Estriol 2. Prednisolone 3. Hydrocortisone 4. Cortisone 5. Cortisone Acetate 6. 21-Hydroxycortisone 7. 17-Hydroxycortisone 8. Deoxycorticosterone |
|

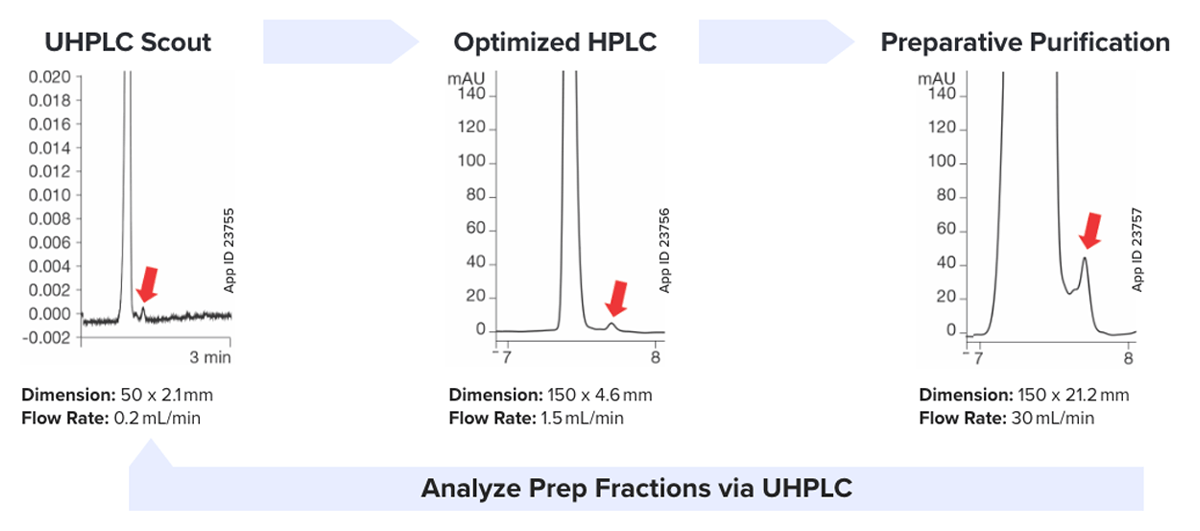

Scalable from UHPLC to HPLC to PREP

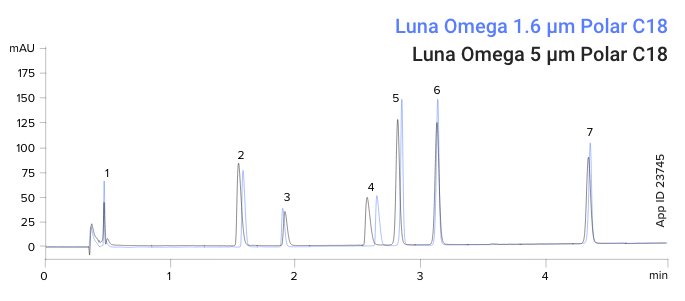

Direct Scalability 1.6 µm to 5 µm
Column: |
|
Dimensions: 50 x 2.1 mm |
|
Mobile Phase: A: Water with 0.1% Formic Acid B: Acetonitrile with 0.1% Formic Acid |
|
Gradient:
Time (min)
0
5
| % B
5
95
|
Flow Rate: 0.4 mL/min |
|
Temperature: Ambient |
|
Detection: UV @ 254 nm |
|
Sample: 1. Uracil 2. Pindolol 3. Chlorpheniramine 4. Nortriptyline 5. 3-Methyl-4-nitrobenzoic acid 6. 5-Methyl salicylaldehyde 7. Hexanophenone |
|
Scalable from UHPLC to HPLC to PREP

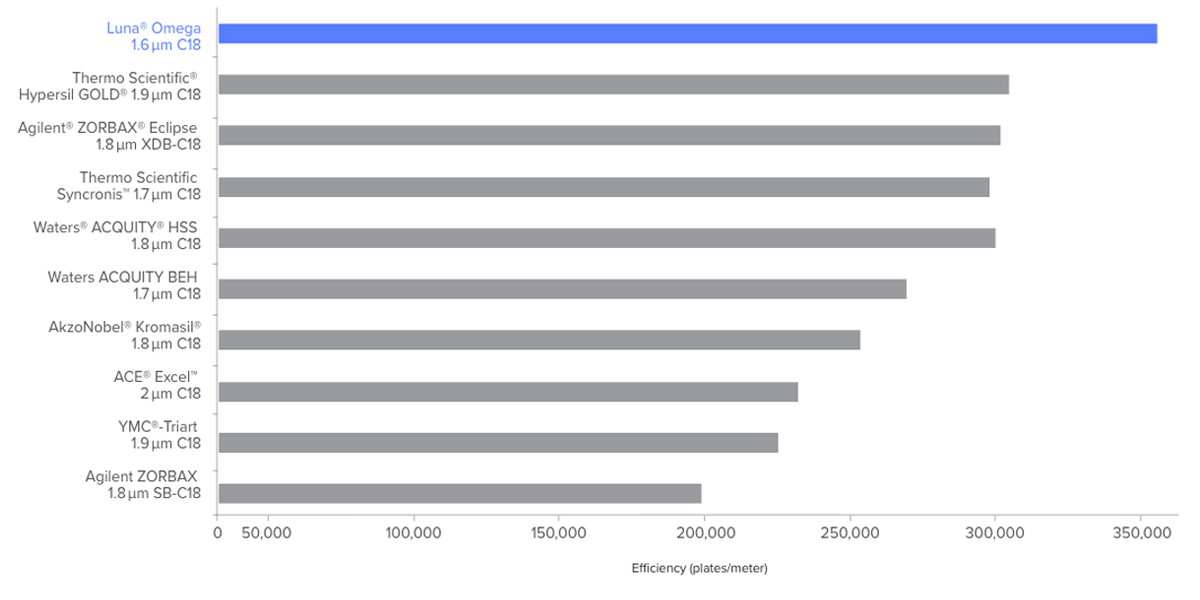

UHPLC Efficiency Comparison
Conditions for all columns:
|
Dimension: 50 x 2.1 mm
|
|
Mobile Phase: Acetonitrile/Water (65:35)
|
|
Flow Rate: 0.5 mL/min
|
|
Temperature: Ambient
|
Comparative separations may not be representative of all applications.
*Efficiency (plates/meter) comparison is based on peak performance associated with the compound naphthalene for all columns.
Detection: UV @ 254 nm |
System: ACQUITY UPLC®
|
|
Sample: Naphthalene*
|
