Kinetex PAH Core-Shell HPLC Columns
Kinetex PAH Core-Shell HPLC Columns provide novel selectivity for polycyclic aromatic hydrocarbons (PAHs)
Kinetex PAH Core-Shell HPLC Columns
Kinetex PAH Core-Shell HPLC Columns
Innovative Polymerically Bonded C18
Controlled pore size processing and a proprietary polymerically bonded stationary phase were developed to ensure excellent resolution between priority polycyclic aromatic hydrocarbons (PAHs). Combined with core shell particle technology, incredibly high efficiency and sensitivity at comfortable LC pressures is very achievable.
- Compatible with All Analytical HPLC/UHPLC Systems*
- Unique Polycyclic Aromatic Selectivity for PAHs (USP:L118)
- 3.5 µm Particle Size for Performance on HPLC or UHPLC Systems
*Kinetex analytical columns are compatible with all LC system with standard LC column end-fittings threaded in 10-32. Please contact us at Phenomenex.com/chat for any questions and information about fitting compatibility and any other column internal diameters.
Selectivity for PAH Compounds
The Kinetex PAH is specifically developed to be the first Core-Shell based LC product for PAH analysis. Perform high resolution PAH separations with fast run times on both HPLC or UHPLC instrumentation with the Kinetex 3.5 µm PAH column.
QC Tested for PAHs (EPA 610)
Ultimately, Kinetex PAH will provide expanded resolution with chemical selectivity specifically for PAHs. It will also increase HPLC/UHPLC throughput and sensitivity with core-shell technology.

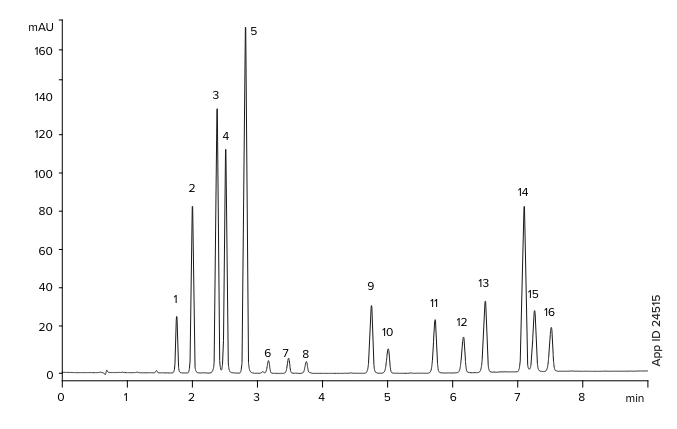

EPA 610 – PAH Analysis
Column:
Kinetex 3.5 µm PAH
|
|
Dimension:
100 x 4.6 mm
|
|
Part No.:
00D-4764-E0 |
|
Mobile Phase:
A: Water B: Acetonitrile |
|
Gradient:
Time (min)
0
7 8 9 12 | % B
50 100 100 50 50 |
Flow Rate:
1.2 mL/min |
|
Backpressure:
136 Bar |
|
Temperature:
35 ËšC |
|
Detection:
UV @ 292 nm |
|
Samples:
1. Naphthalene 2. Acenaphthylene 3. Acenaphthene 4. Fluorene 5. Phenanthrene 6. Anthracene 7. Fluoranthene 8. Pyrene 9. Benzo[a]anthracene 10. Chrysene 11. Benzo[b]fluoranthene 12. Benzo[k]fluoranthene 13. Benzo[a]pyrene 14. Dibenz[a,h]anthracene 15. Benzo[g,h,i]perylene 16. Indeno[1,2,3-cd]pyrene |
|
