Claricep Spherical AQ C18
- Greater polar retention under reversed phase
- Applicable for both hydrophilic and hydrophobic compounds
- Useful for mixtures of compounds with varying polarities
Recommended Use Separation of strong polar compounds using flash chromatography cartridge |

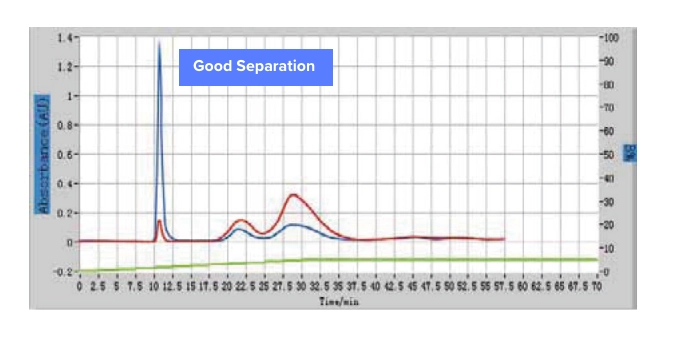

Good Separation
|
Column:
Claricep Spherical AQ C18 ( 20-35 μm, 100 Å)
|
|
Mobile Phase:
Methanol/ Water/Formic Acid
|
|
Flow Rate:
26 mL/min
|
|
Detector:
UV @ 231/214 nm
|
|
Sample:
Iridoids Compounds
|

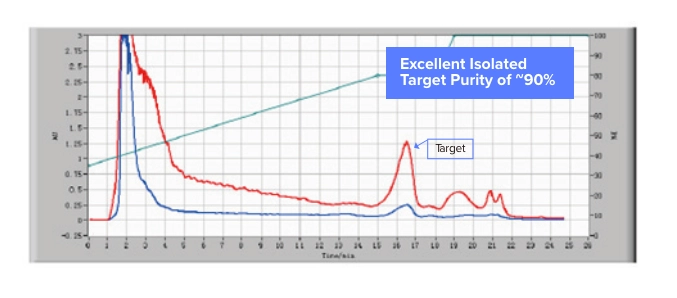

Sample Separation: Purification of Taxol with AQ C18
Column:
Claricep Spherical AQ C18 (20-35 μm, 100 Å, 120 g)
|
|
Part No.:
SQ230120-0
|
|
Mobile Phase:
A: Water B: Methanol |
|
Gradient:
Time (min)
0
15 18 19 25 | % B
35 80 80 100 100 |
Flow Rate:
83 mL/min |
|
Detector:
UV @ 230/54 nm |
|
Sample Loading:
A: Water B: Methanol |
|
CLARICEP Spherical AQ C18 Screw-on Columns
Which Screw-on Series should I order ?
CLARICEP i-Series
The i-Series features a managed column head space with a secured screw-on lid. This new design allows either loading of liquid samples directly onto the column head or loading of impregnated solid sample directly into the space. Users will benefit from:
- Choice of loading method based on sample properties
- Narrow band for liquid samples because of wide loading area
- Dry-loading of solid impregnated samples minimizes band broadening
- Customized loading method upon user preference
Ordering Information
Part Number starts with “SN”. As an example, to order SQ230120-0 in
i-series, Part Number to order is SN-SQ230120-0
CLARICEP c-Series
The c-Series shares the same design, but the column outlet does not have a luer lock structure, this simplifies tubing connection across various flash systems.
Compatible with instruments from the following:- Agela Technologies
- Buchi
- Grace
- Interchim
- Other brands
Ordering Information
Part Number starts with “C”. As an example, to order SQ230120-0 in
c-series, Part Number to order is C-SQ230120-0
CLARICEP s-Series
The s-Series columns are fully packed without a head void. In addition, the Luer lock fittings for both inlet and outlet allows easy operation of tandem columns or the coupling of a loading cartridge.
Compatible with instruments from the following:- Biotage
Ordering Information
Part Number starts with “S”. As an example, to order SQ230120-0 in
s-series, Part Number to order is S-SQ230120-0
