CLARICEP Irregular CM Silica Columns
- Significantly improved performance over regular flash columns
- Silica deactivated by proprietary process
- Alternative selectivity for complex purification requirements

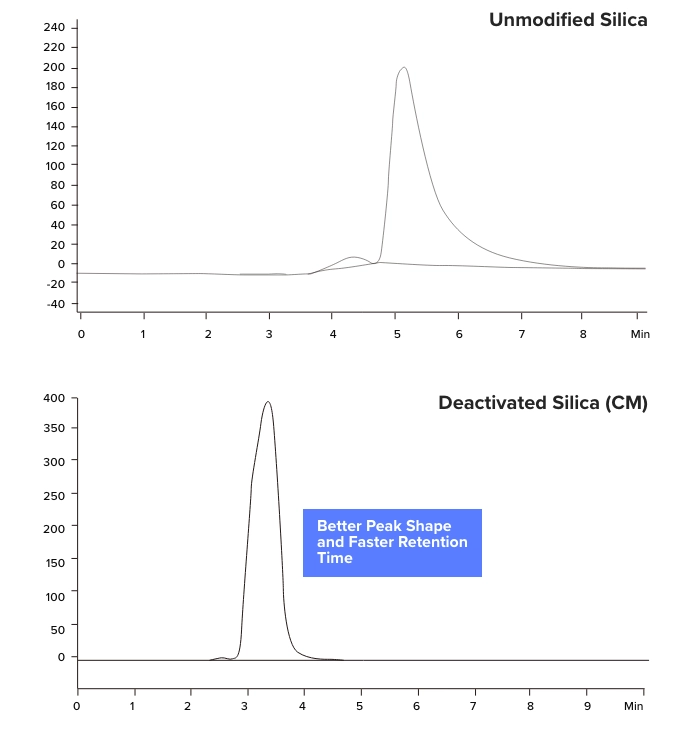

Better Peak Shape with CM Silica
|
Dimension:
4.6 x 150 mm
|
|
Mobile Phase:
Dichloromethane/Methanol (98:2)
|
|
Flow Rate:
1.8 mL/min
|
|
Injection Volume:
5 µL
|
|
Temperature:
30 °C
|
|
Detector:
UV @ 254 nm
|
|
Sample:
Catechol 100 µg/mL
|
CLARICEP Irregular CM Silica Screw-on Columns
Which Screw-on Series should I order ?
CLARICEP i-Series
The i-Series features a managed column head space with a secured screw-on lid. This new design allows either loading of liquid samples directly onto the column head or loading of impregnated solid sample directly into the space. Users will benefit from:
- Choice of loading method based on sample properties
- Narrow band for liquid samples because of wide loading area
- Dry-loading of solid impregnated samples minimizes band broadening
- Customized loading method upon user preference
Ordering Information
Part Number starts with “SN”. As an example, to order CM140012-0 in i-series, Part Number to order is SN-CM140012-0
CLARICEP c-Series
The c-Series shares the same design, but the column outlet does not have a luer lock structure, this simplifies tubing connection across various flash systems.
Compatible with instruments from the following:- Agela Technologies
- Buchi
- Grace
- Interchim
- Other brands
Ordering Information
Part Number starts with “C”. As an example, to order CM140012-0 in
c-series, Part Number to order is C-CM140012-0
CLARICEP s-Series
The s-Series columns are fully packed without a head void. In addition, the Luer lock fittings for both inlet and outlet allows easy operation of tandem columns or the coupling of a loading cartridge.
Compatible with instruments from the following:- Biotage
Ordering Information
Part Number starts with “S”. As an example, to order CM140012-0 in
s-series, Part Number to order is S-CM140012-0
