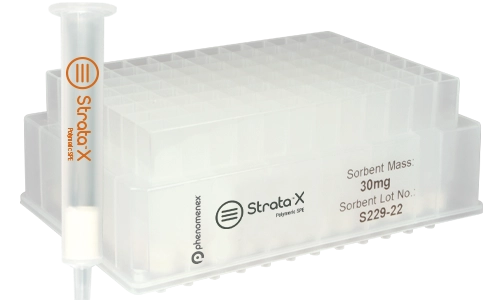

Strata-X Solid Phase Extraction
Robust, Accurate Polymeric Solid Phase Extraction (SPE) Chromatography Products
Capitalize on cleanliness without sacrificing recovery with Strata-X polymeric SPE sorbents for solid phase extraction procedure. Strata-X polymeric sorbents are available in unique selectivities that have been developed to cover a diverse spectrum of analytes and simplify the method development process for fast and efficient sample preparation.
- Tightly retain analytes
- Remove unwanted contaminants including phospholipids, proteins, and particulates for superior SPE chromatography
- Easily cleanup large or small volumes
- Strata-XL cleans up viscous samples as well as target analytes that exceed 10 kDa
- The 96-well plate microelution Strata-X formats are ideal for concentrated extraction for small volumes
Available Formats
96-Well-Plate
96-Well-Plate
1, 3, and 6mL Tubes
Giga Tubes (12-150mL Tubes)
On-line Extraction Columns and Cartridges
The Complete Guide to Solid Phase Extraction (SPE)
Learn how to develop a customized method for SPE and view applications that are applicable to a variety of different industries. Download the Complete Guide to Solid Phase Extraction (SPE) to quickly develop a new method with application examples. Learn about this targeted form of Sample Preparation that allows you to isolate your analyte of interests while removing any interfering compounds that may be in your sample.
- Ultra Clean Extracts
- Concentration of samples for better chromatographic results
- Solvent switching got GC or LC compatibility
- Longer column lifetime and improved chromatographic results
Loading Matrices
Strata-X sample preparation offers a versatile and comprehensive solution for a wide array of matrices across various scientific and analytical domains. Its adaptable design and efficient sorbent technology make it suitable for diverse sample types, including complex biological samples, environmental samples, food and beverage matrices, and pharmaceutical formulations.
| Plasma | Water and Wastewater | Food |
| Blood | Fuel | Beverage |
| Hair | Soil | Urine |

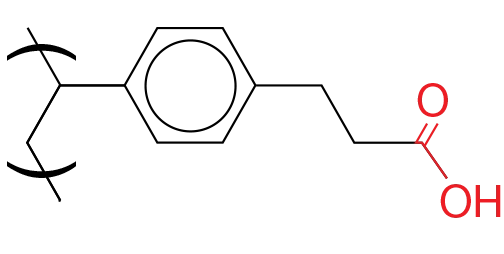

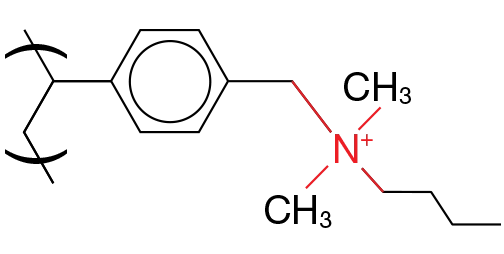

Polymeric SPE Options
The volume of solvent needed for the wash and elution steps is directly related to the mass of sorbent in the SPE tube and more specifically the “bed volume” of the SPE device. Typically 4 – 16 bed volumes are used in SPE methods.

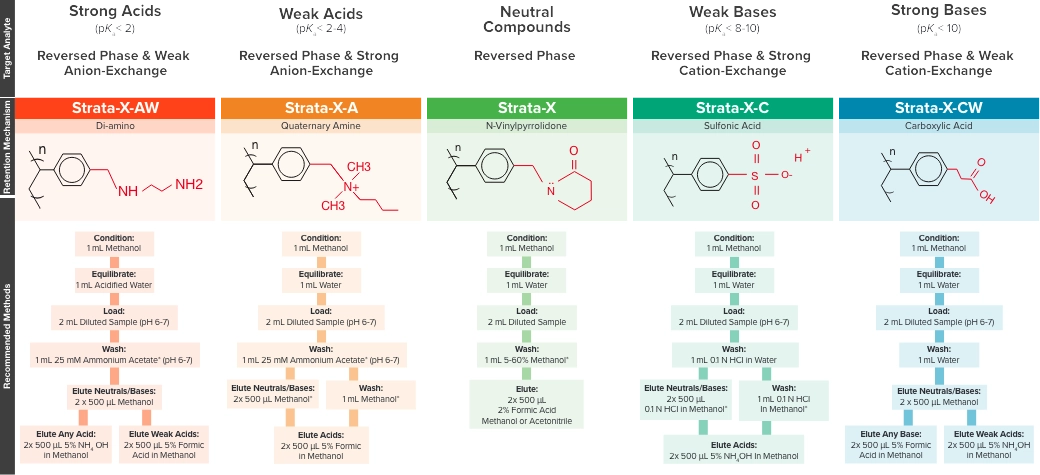

Select Phase Based on Target Analyte
Pharmaceutical: Compounds from Plasma
Improved Clean Up and Recovery of Pharmaceutical Compounds From Plasma: SPE vs. Liquid-liquid Extraction
|
Columns:
|
|
|
Dimension:
50 x 2.1 mm
|
|
|
Part No.:
00B-4622-AN
|
|
|
Mobile Phase:
A: 0.1 % Formic acid in Water
B: 0.1 % Formic acid in Methanol |
|
|
Gradient:
Time (min)
0.00
3.00 4.00 4.01 6.00 |
% B
10
95 95 10 10 |
|
Flow Rate:
500 μL/min
|
|
|
Temperature:
Ambient
|
|
|
Detection:
MS/MS, Triple Quad™ 4500 (SCIEX), ESI+
|
|
SPE Protocol
| Strata-X 30 mg/1 mL | |
|---|---|
| Part No. | 8B-S100-TAK |
| Condition: | 1 mL Methanol |
| Equilibrate: | 2 mL Water |
| Load: | 1.6 mL Pre-treated plasma |
| Wash: | Wash 1 mL 5 % Methanol |
| Dry: | 1 minute under vacuum at 10 inches Hg |
| Elute: | 1 mL Methanol |
| Dry Down: | Dry down @ 53 °C under a stream of nitrogen for 20 minutes |
| Reconstitute: | Reconstitute in 500 μL of mobile phase |
% Absolute Recovery for Diclofenac
| Spiked Concentration | Diclofenac | |
|---|---|---|
| SPE | 15 μg/mL | 86 % (n=4) |
| LLE | 15 μg/mL | 46 % (n=4) |

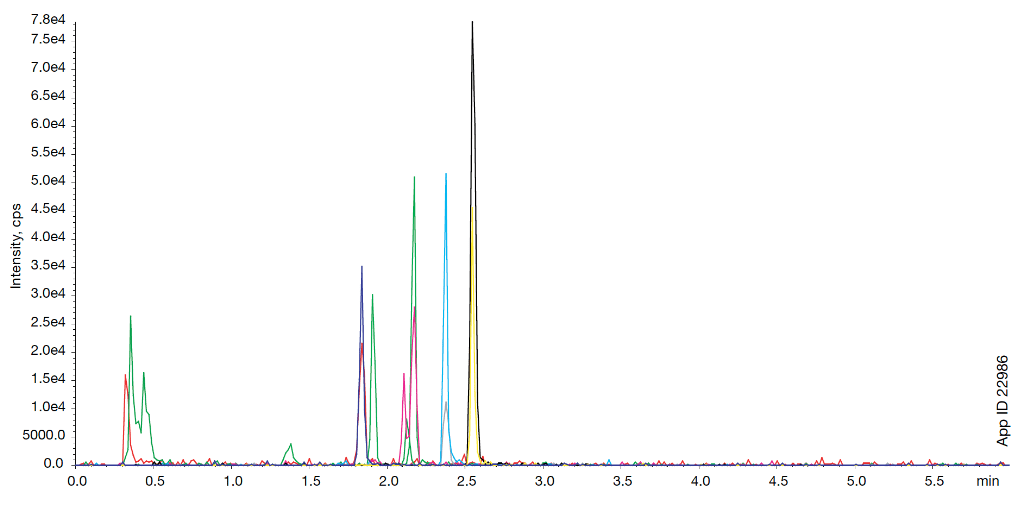

Diclofenac spiked plasma sample (50 μg/mL) after extraction with Strata™-X. Flurbiprofen (IS) was added post-extraction at a concentration of 160 μg/mL. Note: the flurbiprofen was added post blow down, which is also post-extraction.
Recovery data for Amitriptyline resulting from SPE phase screening

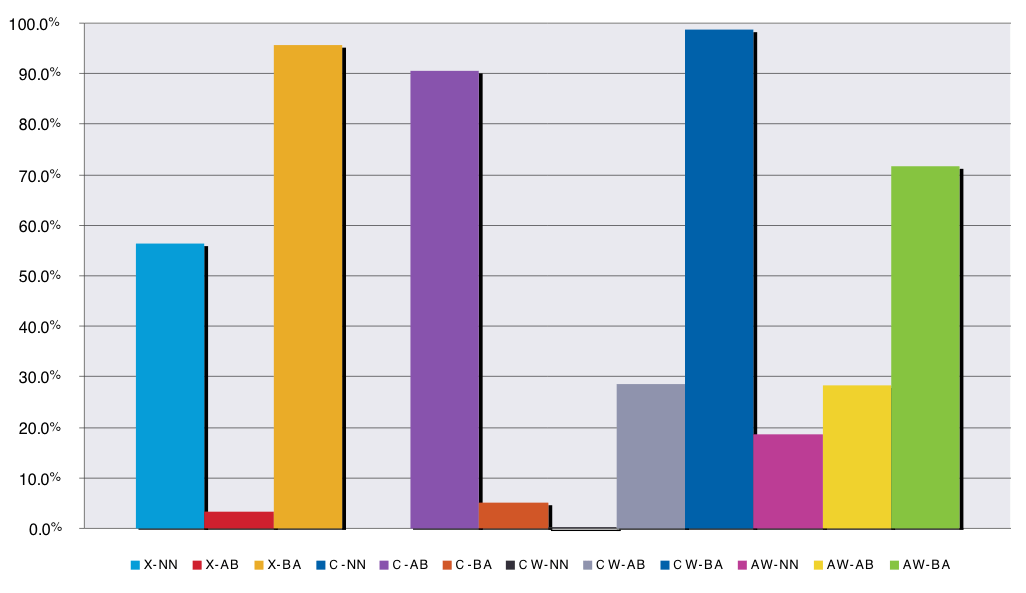

Recovery of Metoprolol

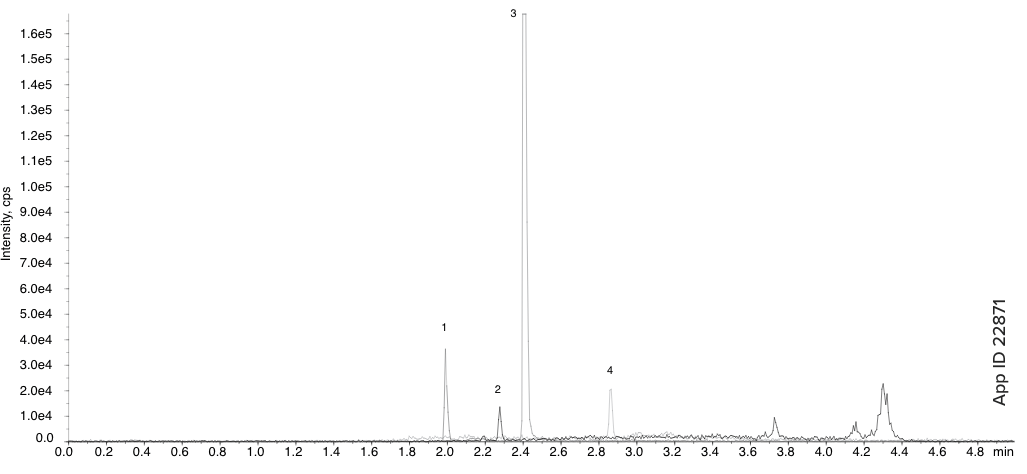

Representative chromatogram of the neat standard at 25 ng/mL
| 1. Metoprolol |
| 2. Prednisone |
| 3. Amitriptyline |
| 4. Diclofenac |
| Metoprolol | % Recovery | % CV | Targeted SPE Phase | Targeted Condition |
|---|---|---|---|---|
| Amitriptyline | 98.8 | 3.2 | Strata-X-CW | BA |
| Diclofenac | 72 | 6.7 | Strata-X-AW | AB |
| Prednisone | 50 | 1.8 | Strata-X | BA |
EPA 552.1 by Strata-X-A on a ZB-XLB-HT
|
Columns:
|
|
|
Part No.:
7HM-G024-11
|
|
|
Phase Name:
ZB-XLB-HT
|
|
|
Injection:
Pulsed @ 250°C, 1.0 μL
|
|
|
Oven Program:
30°C for 4 min to 50°C @ 30°C/min for
1 min to 70°C @ 15°C/min for 1 min to
115°C @ 20°C/min for 2 min to 200°C @
30°C/min.
|
|
|
Carrier Gas:
Constant Flow Helium, 2.3 mL/min
|
|
|
Detection:
Electron Capture (ECD) (340°C)
|
|
|
Sample Notes:
Derivatization: Add 1mL of MTBE to the
eluent in a screw cap vial or test tube.
Heat the sample at 50ºC for 1.5 hours.
Remove and allow the sample to cool to
room temperature. Slowly add 10mL of
saturated sodium bicarbonate and invert
the sample several times releasing carbon
dioxide gas frequently. Aspirate 100µL of
the organic layer and transfer to a 2mL vial
with insert. Add 10µL of internal standard
(1,2,3-Trichloropropane) and inject into
GC-ECD system.
|
